• Project/Site Name:

• Location:

Subhash Nagar Rd, Bhandup (West), Industrial Area,

Bhandup West, Mumbai, 400078

• Scope of Work:

Providing and fabricating, Sliding Gate, Boundary Wall Railing, R.C.C Column, Painting, Bandkam Plaster

Providing and fixing of S.S grade 304 grade decorative railing system modular in form, chemically passivated assembled with fittings with top handrail of 50 mm S.S. pipe (18 guage – 1.25 mm thk), verticals of 36 mm S.S. pipe (18 guage – 1.25 mm thk) at spacing of 1000 mm c/c with fixing in Granite with core cutting & Chemical Grouting, three horizontal of 16 mm S.S. pipe (18 guage – 1.25 mm thk) , railing height to be 600 mm above 450 mm Stainless steel make- Jindal)

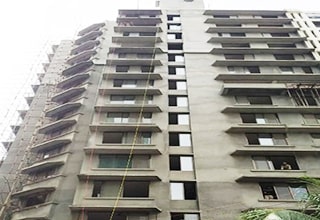

Anchor 16 Mount Blanc, Tilak–Vaibhav CHS Ltd, Bldg No.16, Tilak Nagar, MHADA Colony, Chembur, Mumbai.

• Window Grill

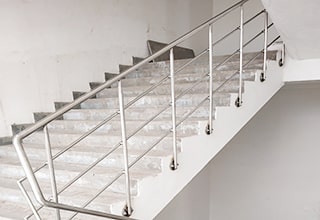

• S.S Staircase

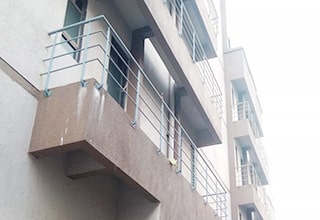

• Balcony Railings
• Rolling Shutter
• Iron Gate

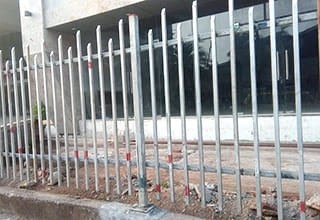

• Boundary Wall Fencing
• Building Terrace water tank

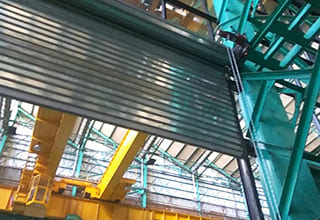

GI ROLLING SHUTTER WITH MOTORISED SYSTEM

Supply & fixing of 19 gage  Gi rolling strip 1 mm thick with side guide 150 x 3 mm thick with motorized system  zinal make with fixing.

EOT Crane Capacity – 2 Ton

Crane Structure details: 76’ x 50’both side gear motor and wheel fittings, Supply erection of I Beam, Support Pillar 200 x 100 I.S Beam 13’ ft , Horizontal Beam 200 x 100 I.S Beam 76’ ft, Crane Beam 500 x 250 I.S Beam 50’ ft, Crane Beam C Channel 300 x 90 mm = 50’ S.FT, Base Plate Bottom 450 x 450 = 12 mm, Top Plate 300 x 300 = 12 mm, Column beam and steel decking, digging and R.C.C for structure support foundation Grounting and painting with complete job.

• Work Details:

Providing & Fabricating

Balcony Railings

Remote Operated Rolling Shutter

Staircase G.I Railing

Sliding Gate Motorised System

Boundary Wall Fencing

SS Staircase

Wall Railing

Box Grill

Providing, Fabrication & Erection of Mechanically operated (Gear operation) Rolling Shutter of specified sizes of approved make, design & specifications.
